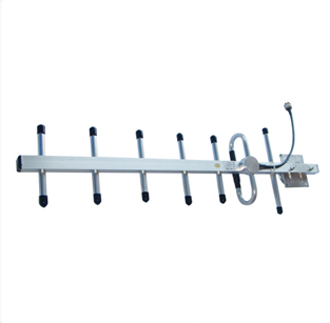

Model :CDMA/GSM Yagi Antenna
Product Overview:
Yagi Antennas including :
GSM900MHZ /CDMA800MHZ Yagi antenna
CDMA/GSM Dual band Antenna
DCS1800MHZ Yagi antenna
PCS1900MHZ Yagi antenna
3G Yagi antenna
2.4G Yagi antenna
Features:
|
Electrical Specifications
|
|
| Frequency Range | 824 ~ 960MHz |
| Polarization l | Vertica |
| VSWR | < 1.4 |
| Gain | 10 dBi |
| Horizontal 3dB Beamwidth | 51° |
| Vertical 3dB Beamwidth | 49° |
| Front-Back Ratio | >14dB |
| Impedance | 50Ω |
| Maximum Input Power | 200 W |
| Connector | N（F）of 7/16DIN（F） |
| Lightning Protection | Direct Ground |
|
Mechanical Specifications
|
|
| Dimensions | 740mm |
| Weight of Antenna | 0.7kg |
| The unit is counted | 7 |
| Diameter of Installation Pole | Φ40 mm ~Φ52mm |
| Wind Velocity | 241km/h |
